IR Beam Set

IR Beam Set – Wireless Start/Stop Sensors for Sport-Timer 3000

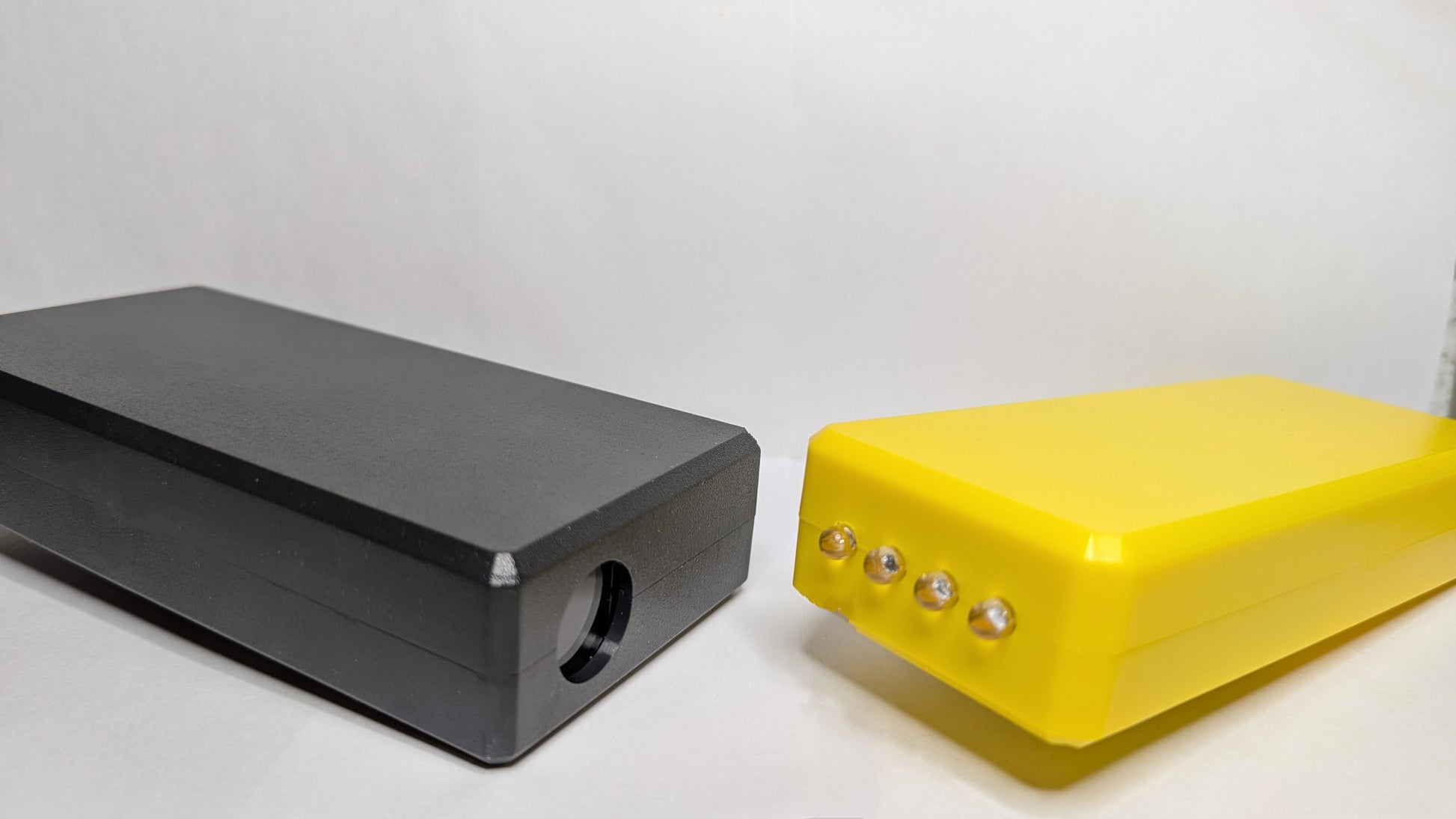

The IR Beam Set is a wireless, hands-free trigger system designed exclusively for use with the Sport-Timer 3000. It includes a yellow IR transmitter and a black IR receiver that create an invisible beam—when the beam is broken by a competitor, it automatically sends a signal to the timer to start, stop, or record a lap.

Whether you're timing races, agility runs, or skill drills, this beam set allows for precise, contact-free timing with no need to push buttons.

🔧 Key Features:

• 🔦 Wireless IR Beam Triggering: Automatically starts or stops the Sport-Timer 3000 when the beam is broken.
• 📏 Adjustable Range: Works from 6 to 100 feet (2–30 meters) between transmitter and receiver.
• 🎯 Easy Alignment: Built-in LED alignment indicator helps you position the beam perfectly every time.
• 🔋 Battery Powered: Each unit runs on a standard 9V alkaline battery (no cords or power outlets required).

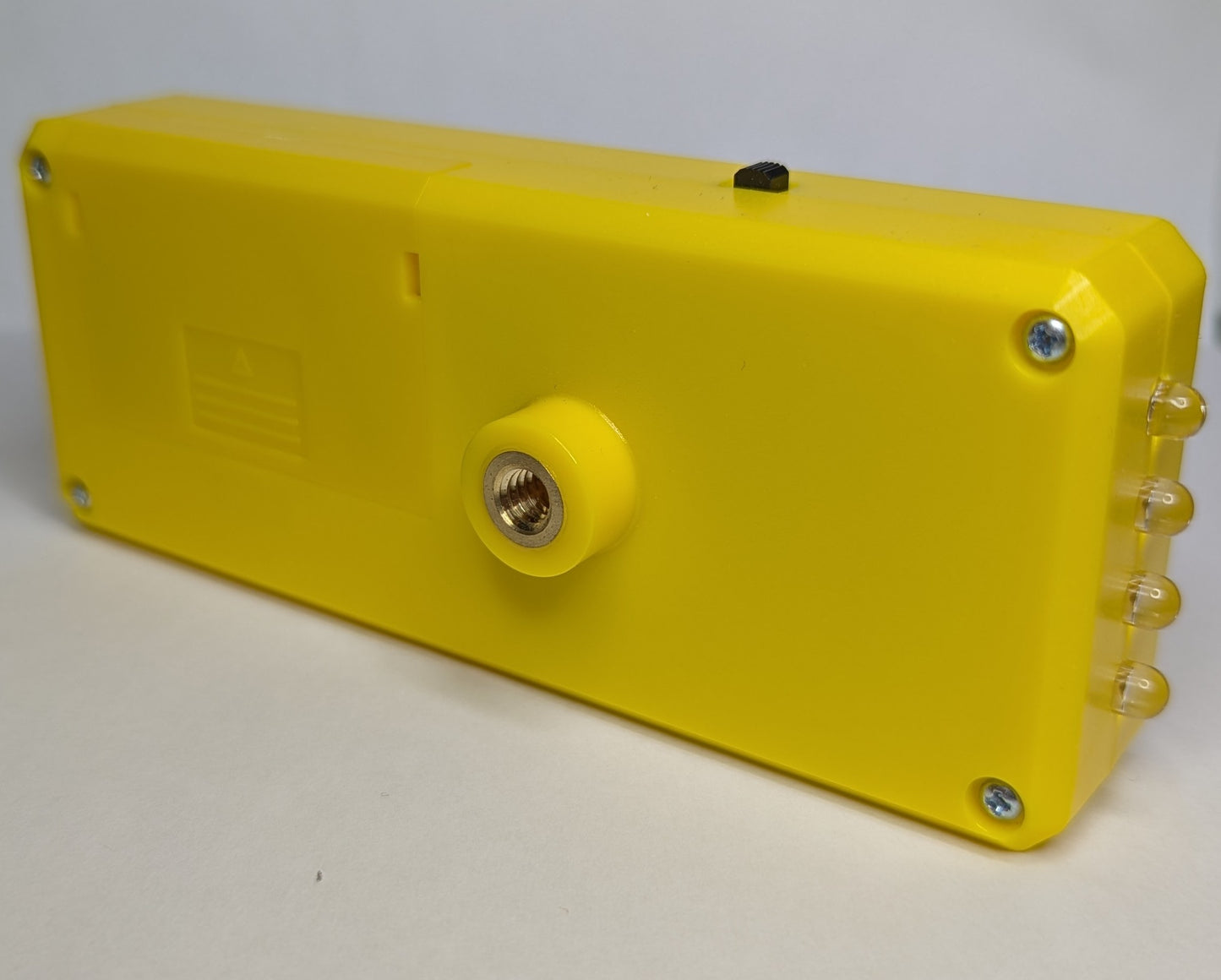

• 📸 Tripod-Ready: Standard tripod screw mounts on both units for fast setup (tripods not included).
• 🌞 Outdoor Ready: Operates in most lighting conditions; beam alignment recommended away from direct sunlight.

📦 What’s Included:

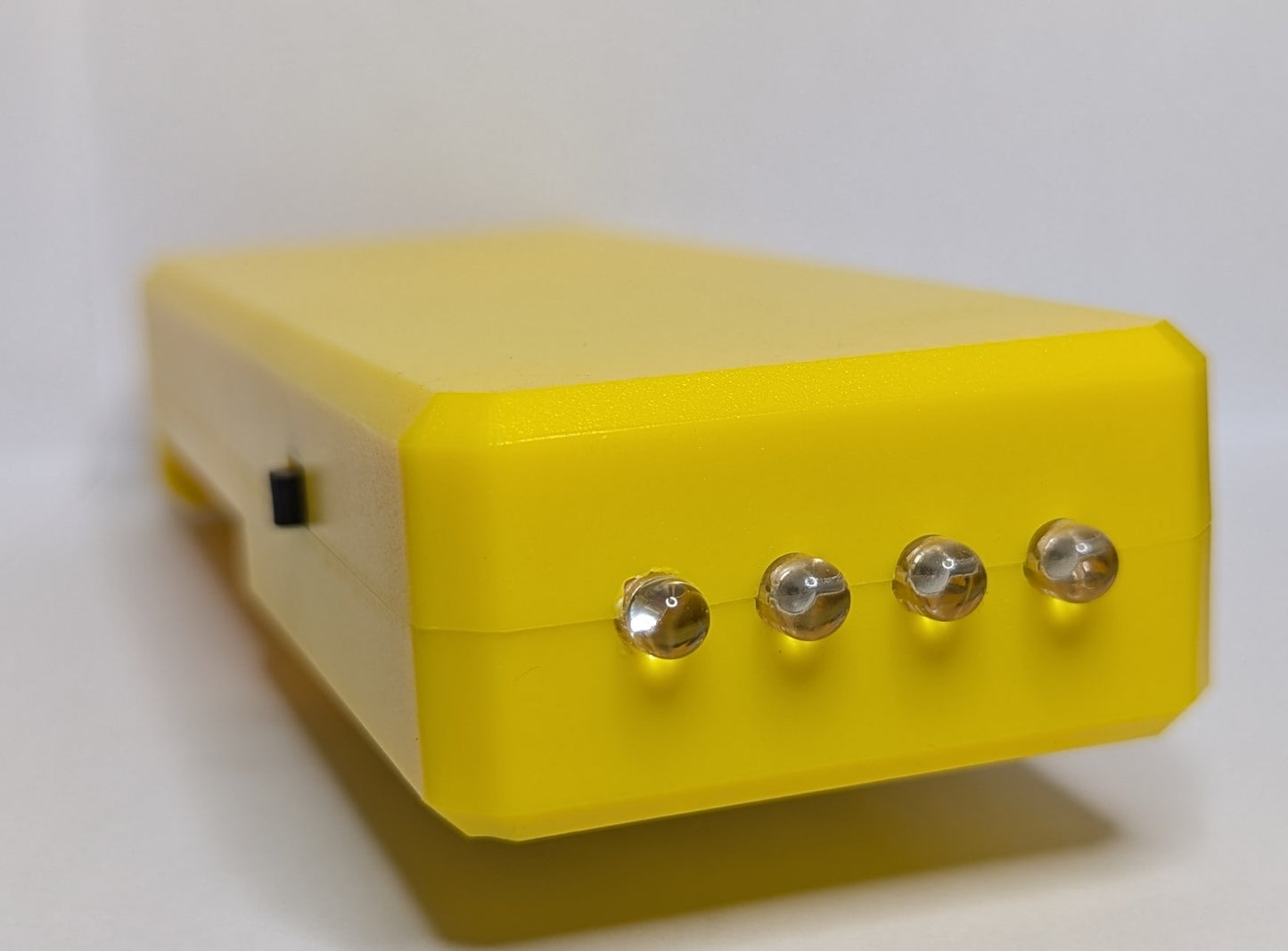

• 1x IR Transmitter (yellow box)

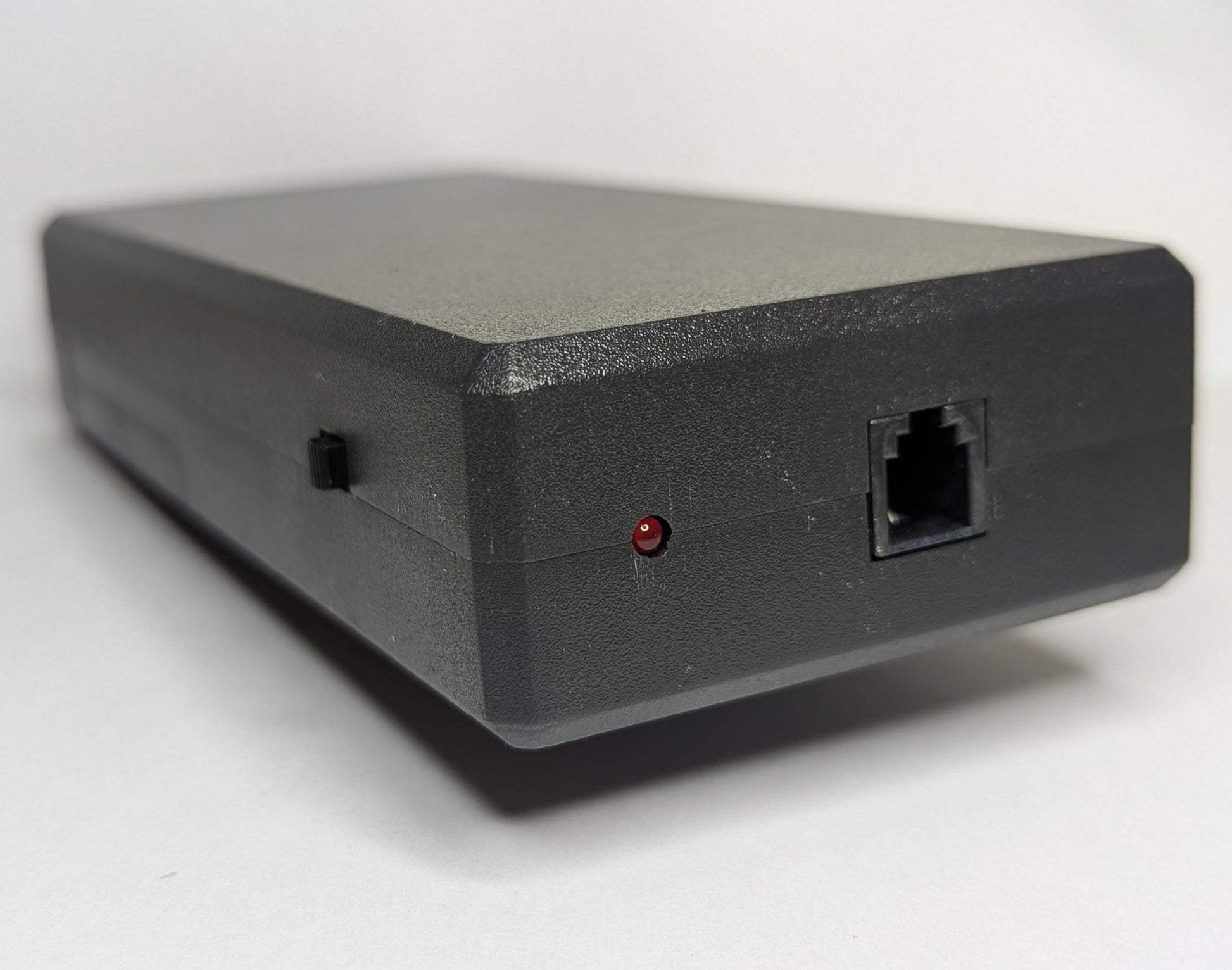

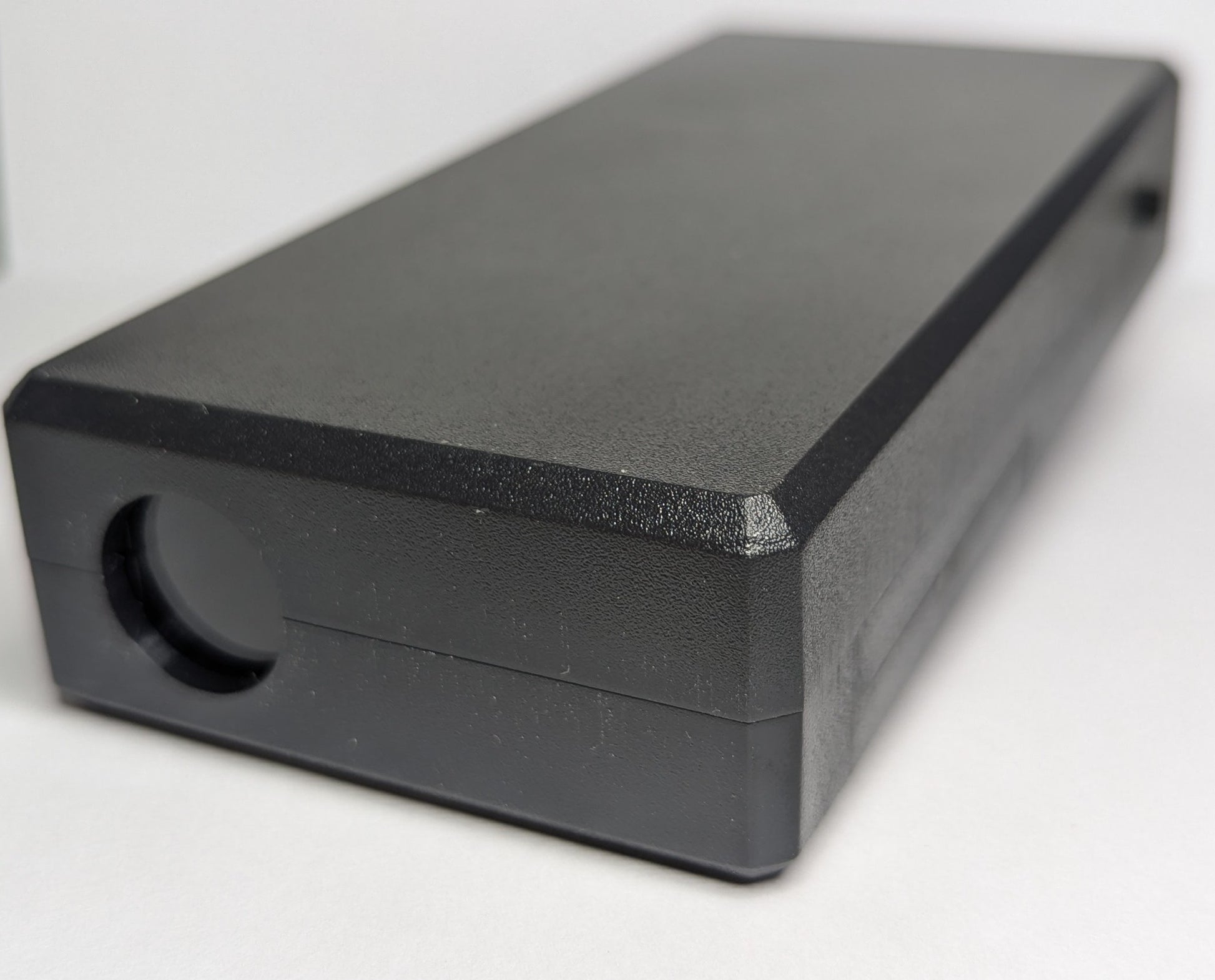

• 1x IR Receiver (black/grey box)
• Instructions for alignment and setup

⚠️ Note:

The IR Beam Set requires the Sport-Timer 3000 to function. It does not operate as a standalone system.

Pair this beam set with your timer and (optionally) a scoreboard to build a complete, wireless timing system for your next event or training session.
